| نام: | سانتریفیوژ | مدل: | BR-Mini-4G |
|---|---|---|---|
| موتور: | موتور آهنربای دائم DC24V DC | حالت کنترل: | درایو برق مستقیم PI |
| حداکثر سرعت چرخش: | 4000 دور در دقیقه، ± 3٪ | حداکثر نیروی گریز از مرکز نسبی: | 990× گرم |
| سریعترین زمان شتاب: | ≤3 ثانیه | سریعترین زمان کاهش سرعت: | ≤3 ثانیه |

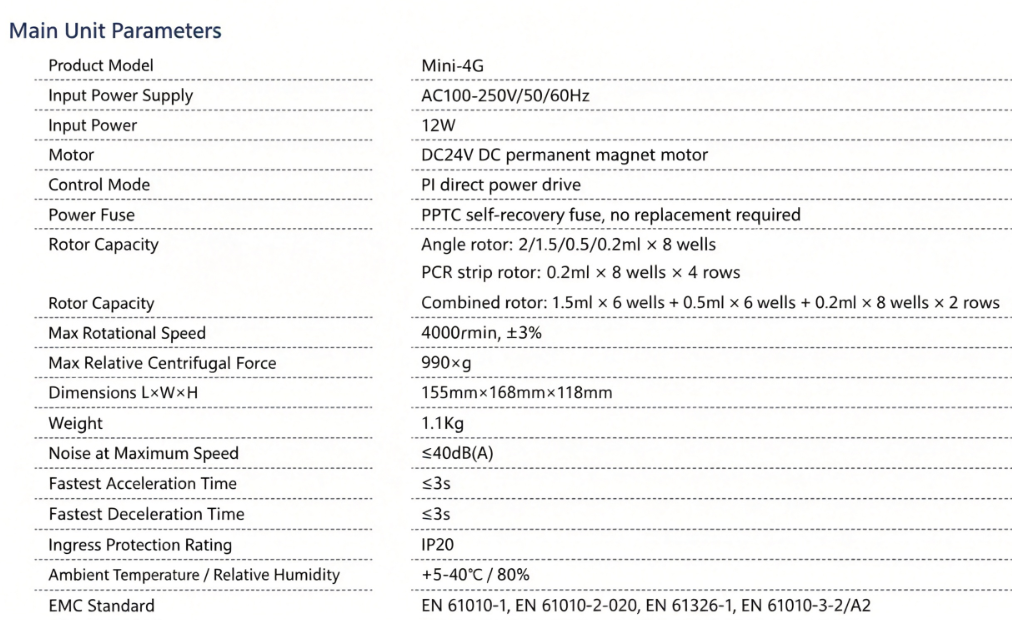

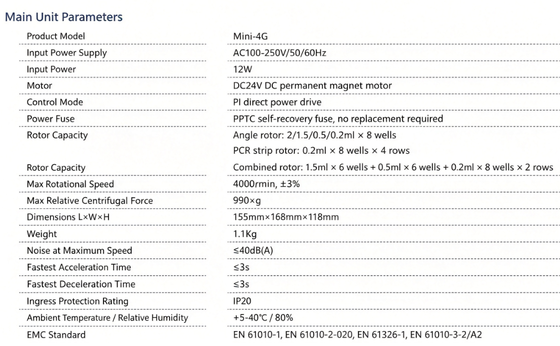

Centrifuge BR-Mini-4G Input Power Supply: AC100-250V/50/60Hz Input Power: 12W Motor: DC24V DC permanent magnet motor Control Mode: PI direct power drive Power Fuse: PPTC self-recovering fuse, no replacement required Rotor Capacity: Angle rotor: 2/1.5/0.5/0.2ml × 8 wells PCR strip rotor: 0.2ml × 8 wells × 4 rows Combined rotor: 1.5ml × 6 wells + 0.5ml × 6 wells + 0.2ml × 8 wells × 2 rows Max Rotational Speed: 4000r/min, ±3% Max Relative Centrifugal Force: 990×g Dimensions (L
